10' DOOR POSITION AWARE SYS LED STRIP W/CONTROL & HWDR

DCAS10, 10' DOOR POSITION AWARE SYS LED STRIP W/CONTROL & HWDR

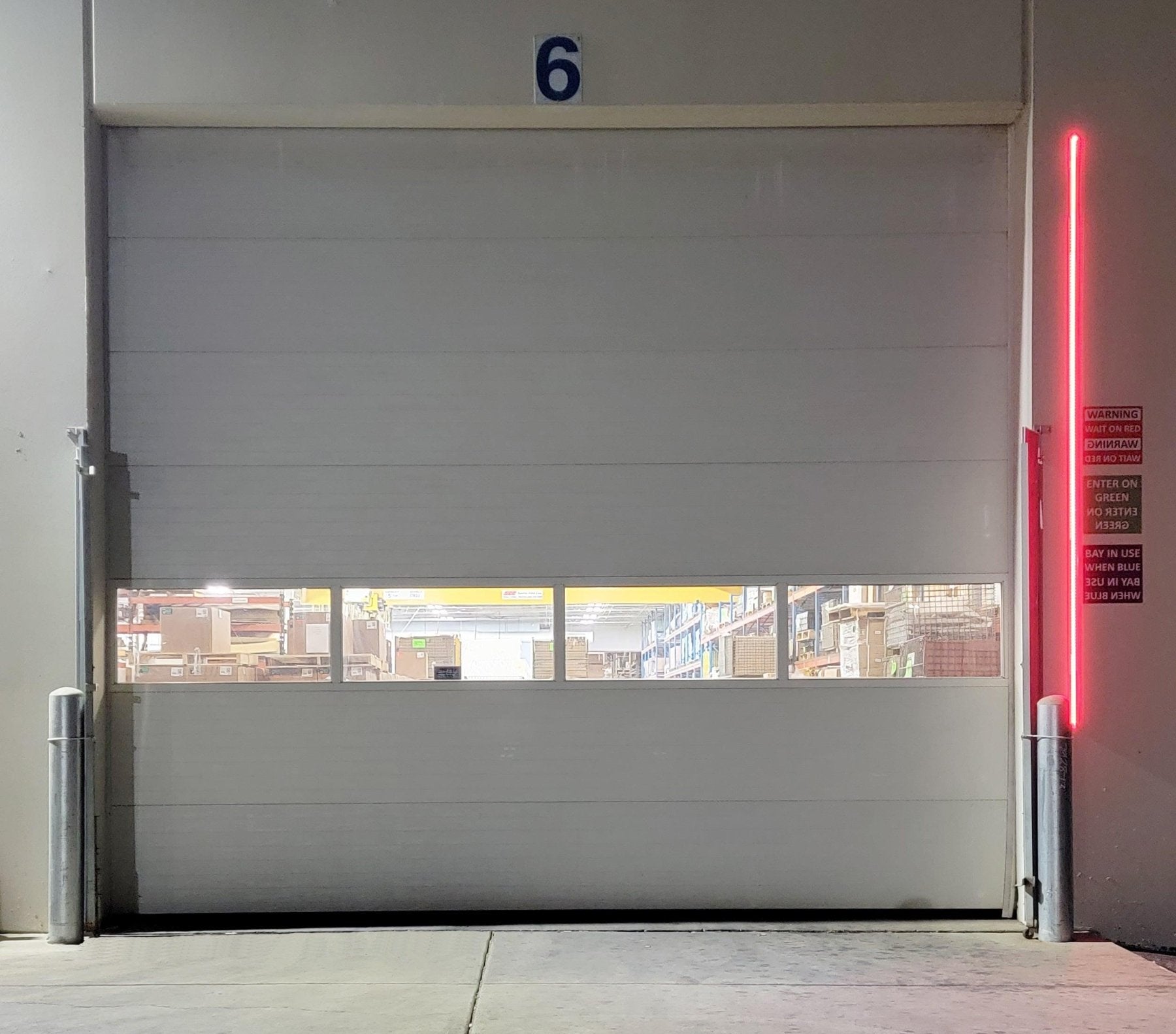

Door Condition Awareness System (D-CAS) informs drivers of the state of a drive-through overhead door even when the driver is unable to see its position. A 10’ colored LED Light strip is mounted to both the inside and outside of the door. A driver pulling in or backing in is supplied with door travel information.

FEATURES AND BENEFITS

• LEDs are off (or solid red) when door is down, flashing red when in motion, and solid green when door is fully open.
• Reduces door and vehicle damage, lost product, and unnecessary costs when installed.
• Acts as a power loss indicator — LEDs flash RED if the operator loses power.
  When installed in firehouses and EMT stations, the Red LEDs preserve night vision and reduce the need for harsh white lights during evening hours.
• Compatible with most commercial garage door operators.
• LEDs are IP68, Waterproof, UV Protected and highly visible in the daylight.

STANDARD KIT INCLUDES (2) 10’ sections of LEDs w/40’ of cable and 20’ of double-edge flat track for mounting, one NEMA rated enclosure w/LED Controller + 120v/12v power supply, and inside and outside signage.
