Heavy-Duty Foam Loading Dock Seal, 8' and 9' High Door

Heavy-Duty Loading Dock Seal Pads, Foam-Fit 40 oz Vinyl, 24 High Guide Stripes - Select Variation

Product is made-to-order. This item ships in 7 weeks.

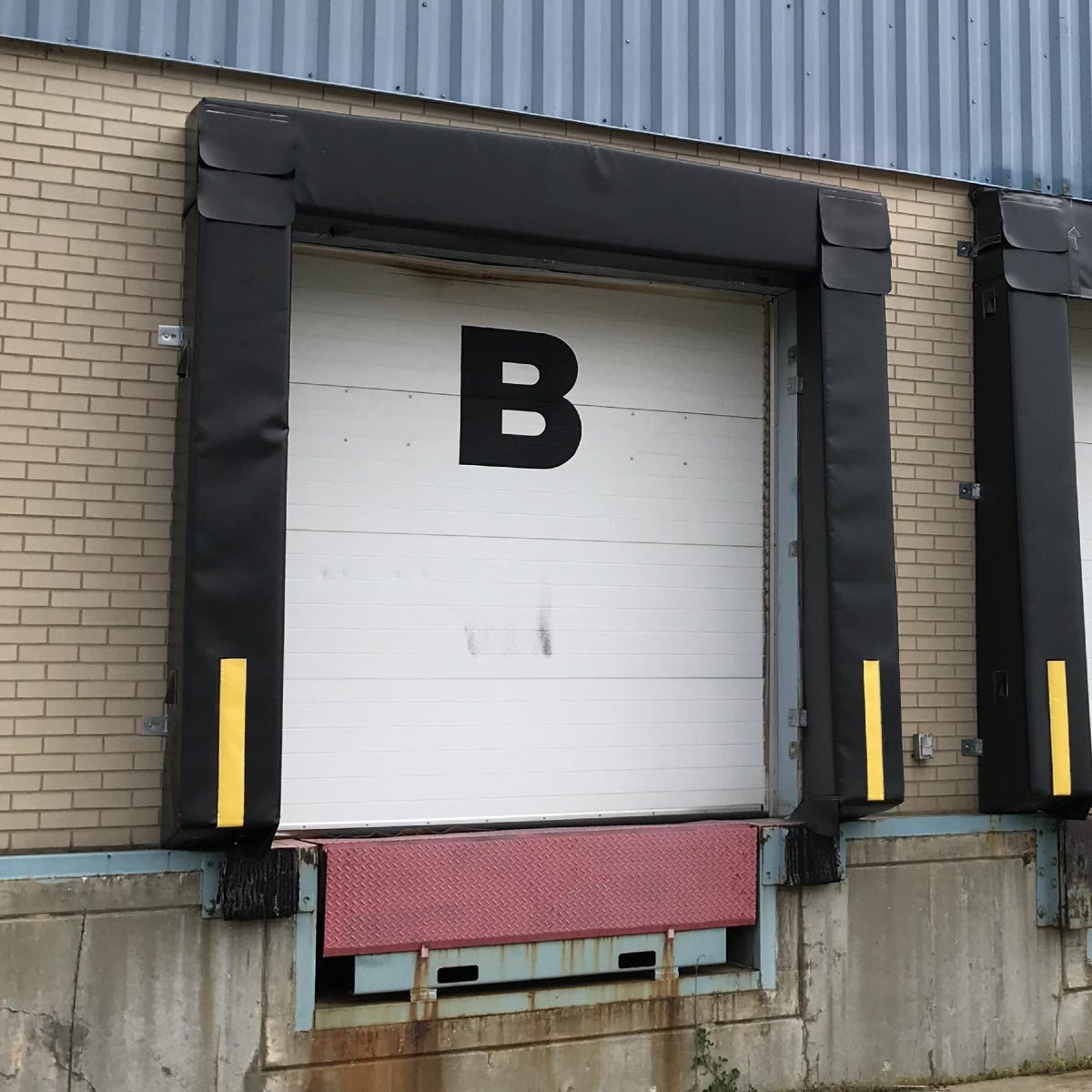

Truck dock seal pads save you money on your energy bills while providing airtight protection to the loading dock area during materials handling operations. Dock pads act as a barrier to keep your interior environment separate from the outside elements. Vehicles at the dock compress the foam dock pads, eliminating the gap between the building and truck body.

The ideal trailer or truck seal with a side pad taper to match your driveway grade. Beveled side pads ensures greater accessibility to truck or trailer openings.

• Durable 40 oz Vinyl cover fabric
• 8" overlapping wear pleats at top corners for added wear protection
• Polyurethane foam compresses and conforms to body irregularities
• Kiln-treated lumber frame
• Highly visible, urethane finished yellow guide stripe
• Bonded, high-tensile and multi-cord polyester thread
• Includes rust-resistant installation brackets
• Designed for a standard 48" dock height

Please use the following guide for selecting the right dock seal:

Door Size: Measure the door opening, first across and then height. For a door that is 96" across and 108" high, the format is 8X9.

Pad Projection: A measurement 5" beyond dock bumper face is required for adequate seal compression. Start by measuring the building ledge at your dock (if there is one). Then measure the dock bumper projection from the wall to the face of the dock bumper. Add the numbers together with an additional 5" for compression to get the total dock seal projection.

For questions about this product, please call 855-951-4499.
